VertilinaHybrid

Natural warmth. Vertical cool.

Output more information
Packshot_VertiLina

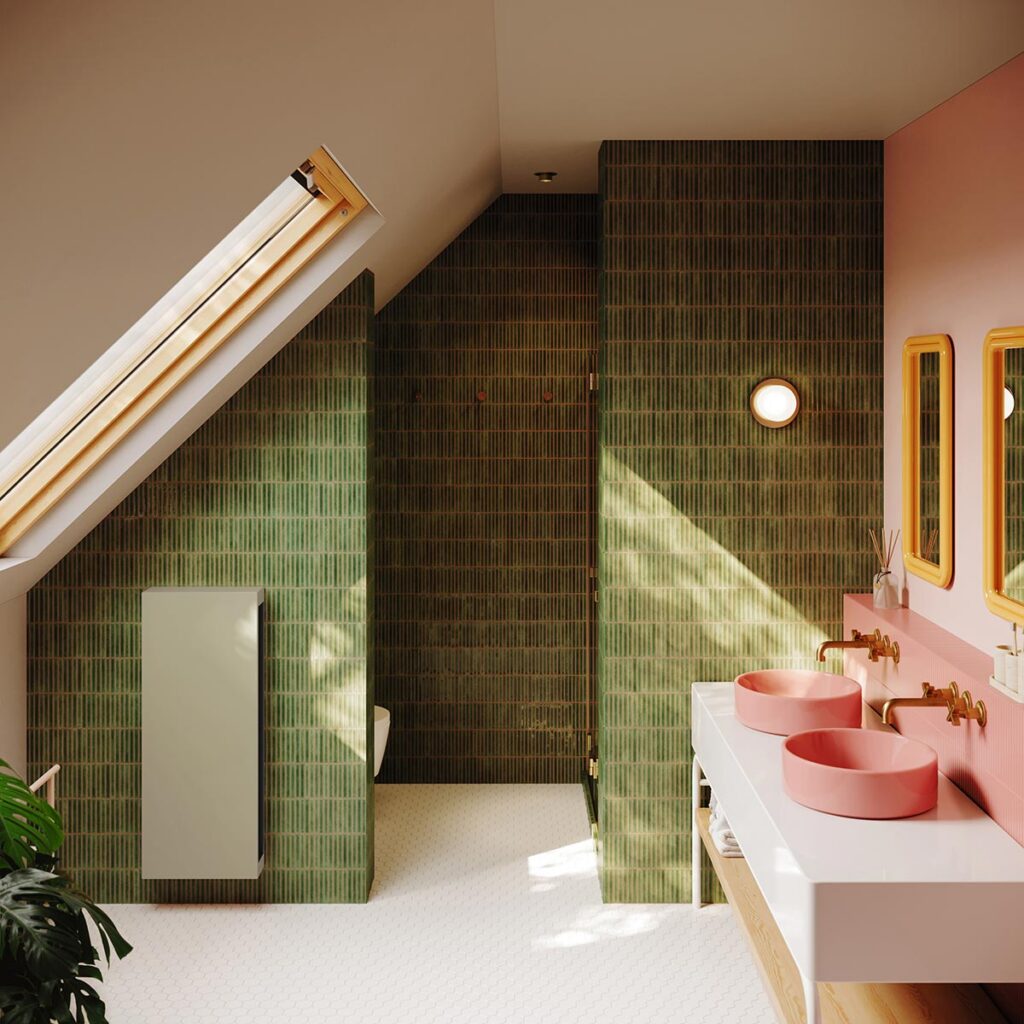

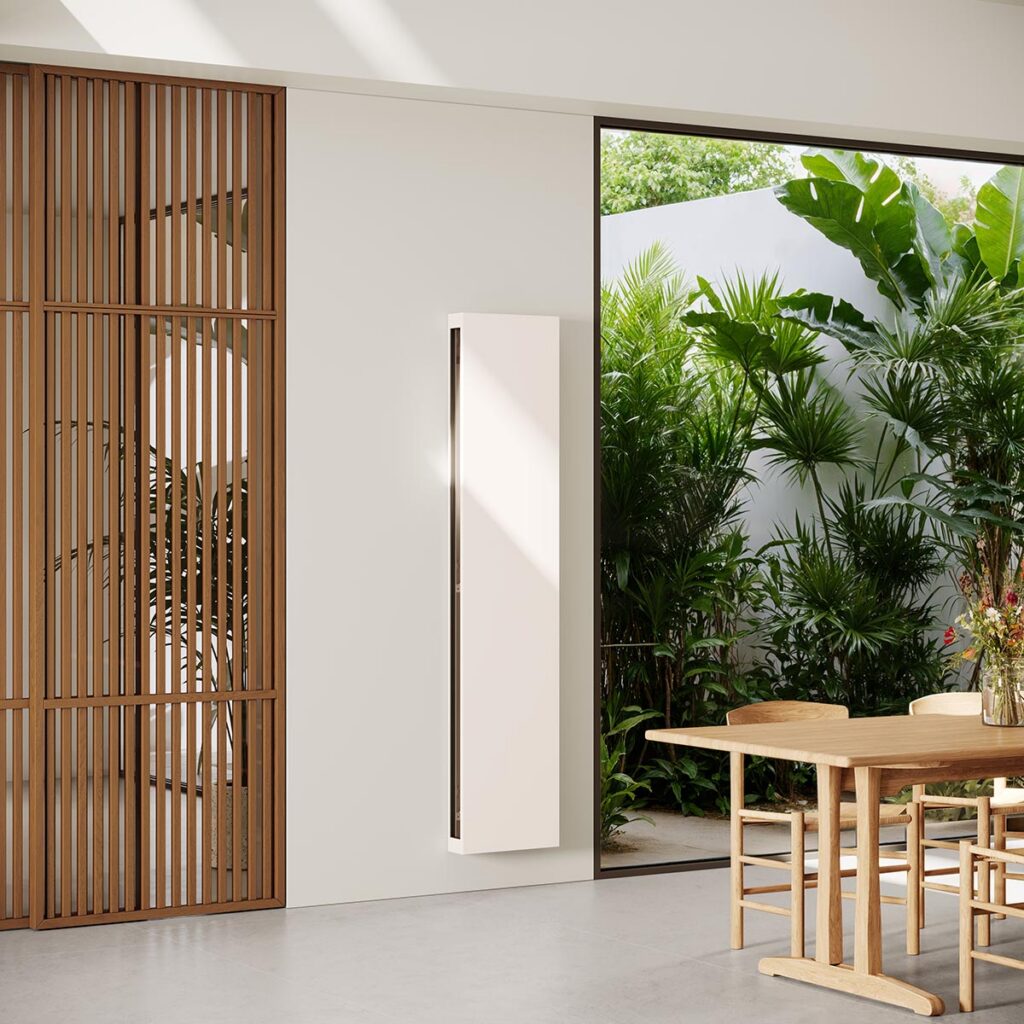

Vertilina Hybrid is the versatile vertical Jaga solution for energy-efficient cooling and heating with low water temperatures. Thanks to its high efficiency, this compact unit delivers comfortable and rapid results all year round. The slim, vertical design of this hybrid convector allows placement on a small wall surface, ideal for spaces where every centimetre counts. Vertilina Hybrid combines quick installation and reliable performance in a single compact, efficient and dependable heat emission system.

  • more space thanks to the slim vertical design
    With a width of just 41 cm, there's more room for your interior.
  • seamlessly integrates into any design
    Available in 11 heights and in all Jaga design colours.
  • comfortable cooling and heating combined into one system
    Non-condensing cooling combined with efficient low-temperature heating
  • proven technology with a long service life
    The Low-H2O heat exchanger delivers rapid response and high efficiency, backed by a 30-year warranty.
  • 30 years warranty

Output

Vertilina Hybrid EX

Type Height (H) [cm] Position [1-2-3]
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Type Height (H) [cm] Length (L) [cm] Position [1-2-3] Non-condensing cooling (16/18/27) [Watts] Heating (35/30/20) [Watts] Heating (45/40/20) [Watts] Heating (50/45/20) [Watts] Heating (55/45/20) [Watts] Heating (75/65/20) [Watts] Sound Pressure Level [dB(A)]  Water Content (L) Power Consumption [Watts] Ordercode
1 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 10:39 AM 11 90 41 1 253 396 720 882 955 1735 26,0 1,2 9,9 VLAW 090 41 11 XXX 104 R DDD
2 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 10:59 AM 11 90 41 2 273 438 796 975 1056 1919 30,0 1,2 11,5 VLAW 090 41 11 XXX 104 R DDD
3 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 10:39 AM 11 90 41 3 293 491 891 1091 1182 2148 34,8 1,2 12,3 VLAW 090 41 11 XXX 104 R DDD
4 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:00 AM 16 90 41 1 329 551 1000 1224 1327 2410 26,0 1,8 9,0 VLAW 090 41 16 XXX 104 R DDD
5 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:00 AM 16 90 41 2 354 584 1061 1299 1408 2556 30,0 1,8 9,8 VLAW 090 41 16 XXX 104 R DDD
6 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:00 AM 16 90 41 3 372 604 1097 1343 1456 2644 32,4 1,8 12,0 VLAW 090 41 16 XXX 104 R DDD
7 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:01 AM 11 100 41 1 292 456 828 1013 1098 1994 26,0 1,3 11,1 VLAW 100 41 11 XXX 104 R DDD
8 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:01 AM 11 100 41 2 315 502 913 1117 1211 2199 30,0 1,3 12,7 VLAW 100 41 11 XXX 104 R DDD
9 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:01 AM 11 100 41 3 342 572 1040 1273 1380 2506 35,5 1,3 14,4 VLAW 100 41 11 XXX 104 R DDD
10 jagadmin 18/02/2026 10:39 AM jagadmin 18/02/2026 11:02 AM 16 100 41 1 376 630 1144 1401 1518 2757 26,0 2,0 10,6 VLAW 100 41 16 XXX 104 R DDD

Standard delivery

Fully pre-assembled vertical radiator with

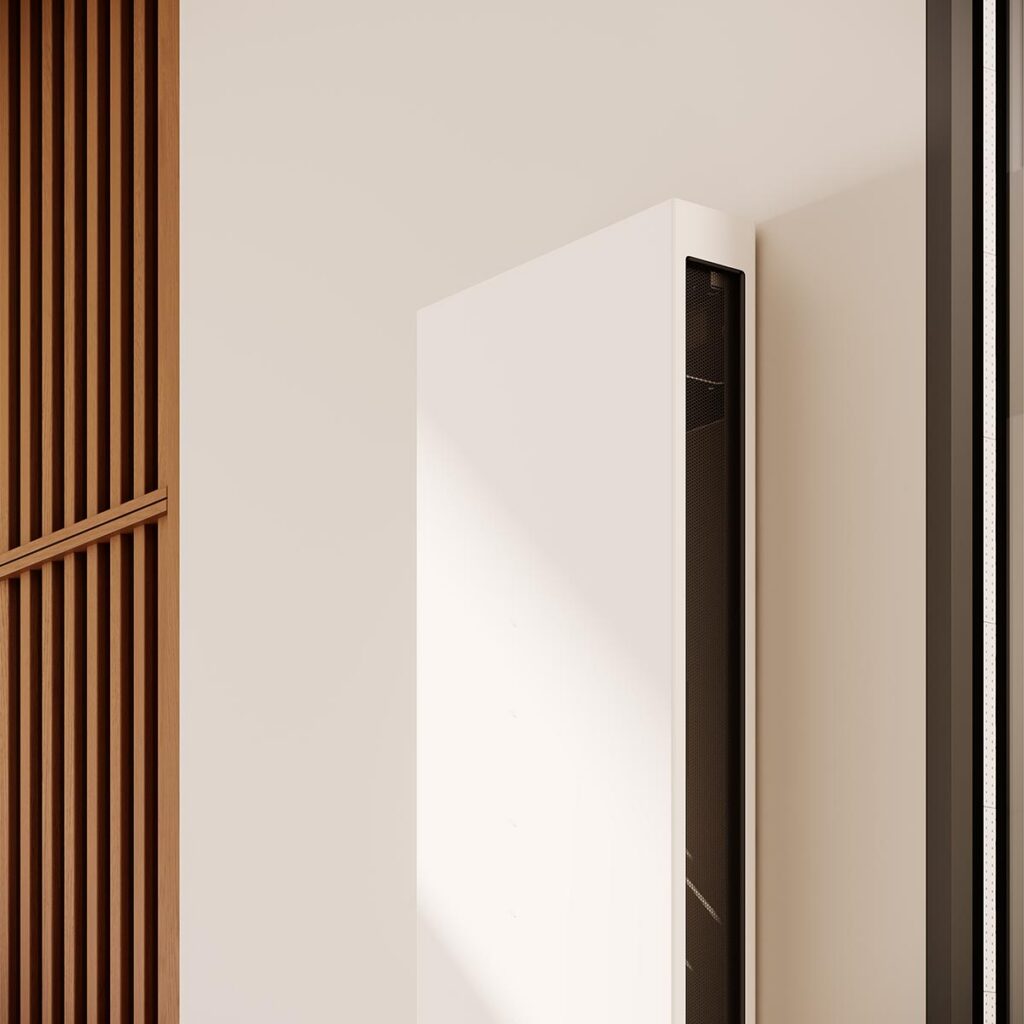

  • casing made of electro-galvanised 1.25 mm thick steel sheet. With hexagonal perforations (jet black 104) on the longitudinal sides for air supply and exhaust. Easy to hook in on the rear panel.
  • rear panel with fixing points made of sendzimir-galvanised sheet steel, jet black 104
  • Low-H2O heat exchanger with 1/2" air vent and 1/2" drain cock
  • 230 VAC connection with watertight connection gland (IP68)
  • fan rail, integrated power supply and control system of choice
  • connections can be completely concealed within the casing.
  • Extension pipes for connection underneath the cladding are supplied as standard.
  • This heater is not equipped with a condensation monitor. It has to be integrated into the installation (only for cooling).



Dimensions

VertilinaHybrid_dimensions_DAV2

Standard colours

other colours : Vertilina Hybrid
