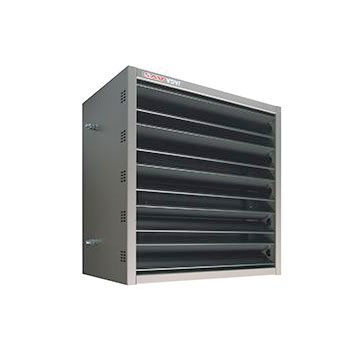

AVS unit heater
Warm power, cutting-edge design
Discreet slim-line design with flat front panel and stylish aluminium grille. It radiates quality!
- The Air Venturi System efficiently blends heated air with the ambient air.
- Faster heating, better temperature distribution, lower energy consumption.
- Ideal for large spaces.
- By using the latest EC motors, up to 32% less electricity consumption
| Type | 021 | 031 | 120 | 130 | 220 | 230 | 320 | 330 | 420 | 430 |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 41 | 41 | 53 | 53 | 65 | 65 | 77 | 77 | 89 | 89 |
| B | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| C | 43 | 43 | 48 | 48 | 49.8 | 49.8 | 57.2 | 57.2 | 55.1 | 55.1 |
| D | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 |
| E | 10.5 | 10.5 | 11.5 | 11.5 | 12.5 | 12.5 | 13.5 | 13.5 | 14.5 | 14.5 |
| F | 30 | 30 | 35 | 35 | 45 | 45 | 56 | 56 | 65 | 65 |
| G | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 5.1 | 5.1 | 5.1 | 5.1 |
| H | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 |
| Ø J | G3/4" | G3/4" | G1" | G1" | G1" | G1" | G6/4" | G6/4" | G6/4" | G6/4" |
| K | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 |
| L | 19.8 | 19.8 | 19.8 | 19.8 | 19.8 | 19.8 | 19.8 | 19.8 | 19.8 | 19.8 |
| M | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 5.2 | 5.2 | 5.2 | 5.2 |
| kg | 20 | 22 | 30 | 32 | 43 | 46 | 56 | 59 | 71 | 75 |
-
Jaga AVS Unit Heater Brochure EN
Brochure
-
Jaga AVS Unit Heater manual
Manual
-
Jaga AVS Unit Heater product description
Technical information
Composition
- casing
- Jaga AVS® System
- heat exchanger
- EC fans
- mounting screws
- hydraulic connection
- electrical connection
