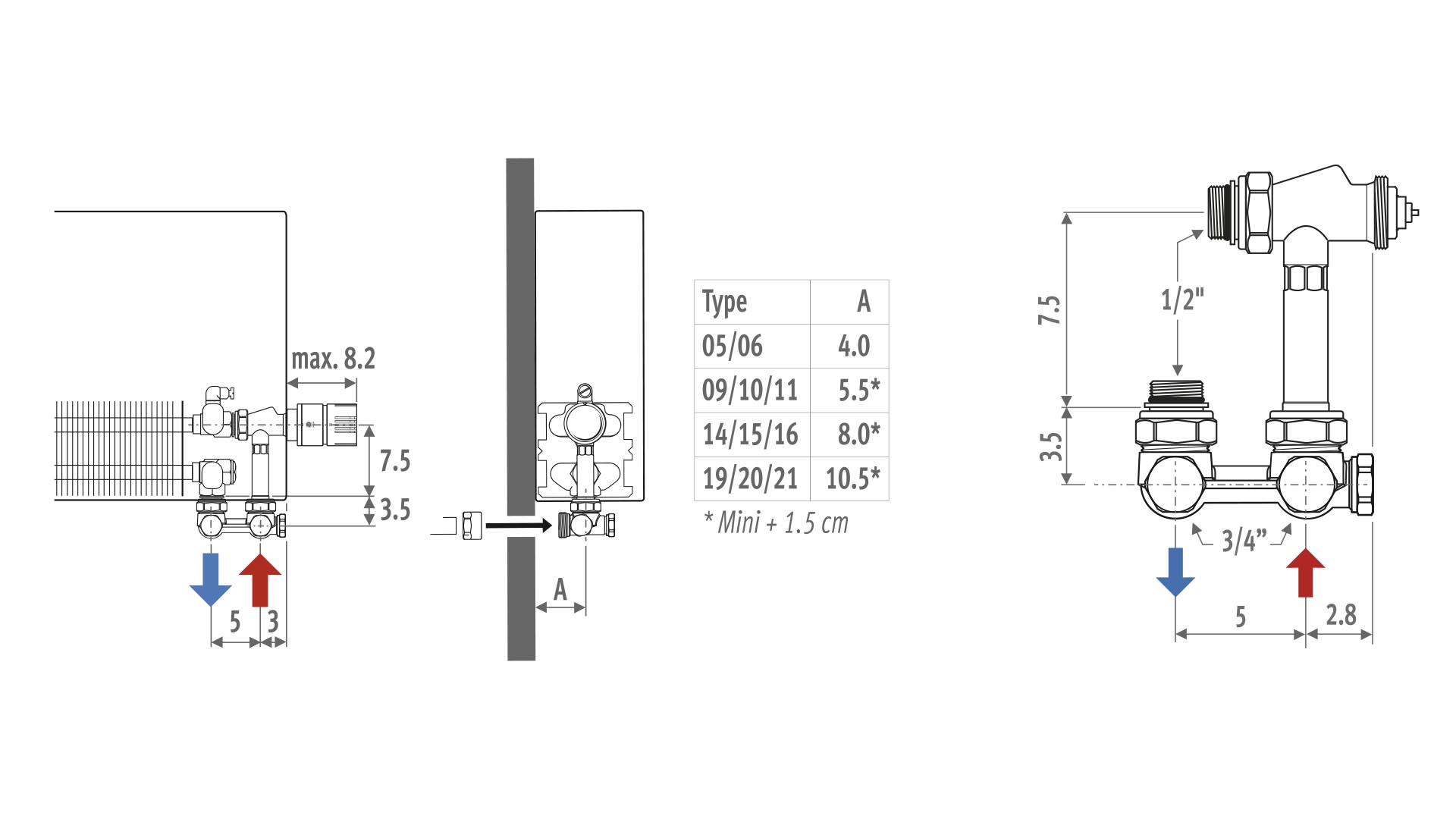

Set 103
Technical information
- 3/4" Eurocone male thread
- One pipe and two pipe
- connection to the wall
- default setting in 6 steps
- Kv-values two pipe: 0.10 to 0.60 m³/h.
- one-pipe bypass control: flow rate 25% to 100% thanks to adjustable radiator
- 2 integrated lockshields and lockable by-pass.
- Tested to DIN EN 215
- With screw thread M30 x 1.5 (Heimeier compatible)
- With synthetic spindle protection for setting on site
Composition of the order code
Order code
Valve, control and sleeve couplings are included in the price
Heating only | ||
COLO.HBSW.JW.4 ... | White | JW |
COLO.HBSW.AC.4 ... | Chrome | AC |
COLO.HBSW.AW.4 ... | White | AW |
COLO.HBSW.AS.4 ... | Silver | AS |
COLO.HBSW.MA.4 ... | White | MA |
COLO.HBSW.JH.4 ... | White | JH |
COLO.HBSW.HC.4 ... | White | HC |
COLO.HBSW.JB.4 ... | Black | JB |
fill in sleeve coupling code.
Heating and cooling | ||
COLO.HBSW.MA.4 ... | White | MA |
COLO.HBSW.HC.4 ... | White | HC |
fill in sleeve coupling code
Sleeve coupling
-
3/4" Eurocone sleeve coupling - Synthetic or RPE/ALU tube
Complete ordering code connection set with code sleeve couplings according to the used material and ø of the tubeSynthetic or RPE/ALU code Tube Ø code Tube Ø 612 12/2 615 15/2.5 614 14/2 619 16/1.5 616 16/2 620 20/2 617 17/2 618 18/2
Synthetic: 30-40 Nm
RPE/ALU: 20-30 Nm
-
3/4" Eurocone sleeve coupling - Precision metal tube
Complete ordering code connection set with code sleeve couplings according to the used material and ø of the tubeprecision metal tube code Tube Ø 112 12/1 114 14/1 115 15/1 116 16/1 118 18/1
Precision metal tube: soft copper 45-55 Nm, semi-hard copper 60-80 Nm, mild steel 60-70 Nm
