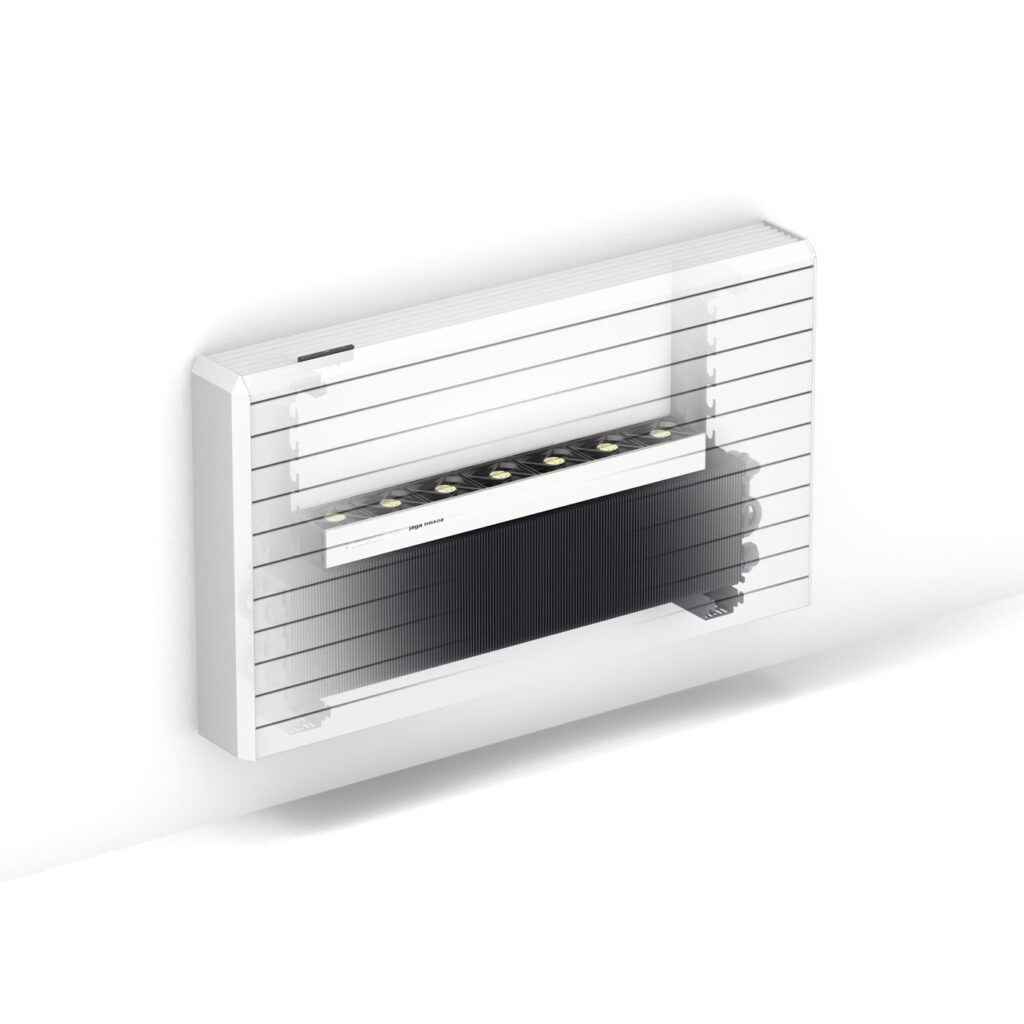

Maxi 2020LST Continuous Hybrid BMS

Seamless warmth from wall-to-wall in robust casing

Outputs more information
  • All the benefits of Maxi 2020 Continuous, but even more compact and more powerful with DBH
  • The ultimate radiator solution for low flow temperatures associated with renewable energy technology
  • Low-cost light cooling when used with reverse cycle heat pumps providing cooled water

BMS - Home automation / Building management system

  • With 0-10V analog input.
  • Without control panel: the speed of the fans is determined by the control signal
  • Automatic heating / cooling changeover is possible.
  • Valve control with thermoelectric motor possible.





  • 30 years warranty

Outputs

Maxi 2020 Continuous Hybrid BMS Outputs

Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT/WF/FF)
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT/WF/FF) Comfort Heating (75/65/20) [Watts] Comfort Heating (55/45/20) [Watts] Comfort Heating (45/35/20) [Watts] Comfort Heating (35/30/20) [Watts] Comfort Cooling (16/18/27( [Watts] Comfort Sound Pressure [dB(A)] Electric Power Consumption [Watts] Ordering Code
1 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 630 130 WT 1130 640 404 243 156 30.0 5.1 Refer to Jaga Technical Department
2 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 630 180 WT - - - - - - - -
3 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 630 230 WT - - - - - - - -
4 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 830 130 WT 1663 942 595 358 249 30.0 7.9 Refer to Jaga Technical Department
5 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 830 180 WT 2080 1178 744 448 281 30.0 7.2 Refer to Jaga Technical Department
6 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 830 230 WT 2697 1567 1011 622 307 30.0 7.2 Refer to Jaga Technical Department
7 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 1030 130 WT 2190 1240 784 471 338 30.0 10.3 Refer to Jaga Technical Department
8 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 1030 180 WT 2705 1532 968 582 379 30.0 10.7 Refer to Jaga Technical Department
9 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 1030 230 WT 3500 2034 1312 808 413 30.0 10.7 Refer to Jaga Technical Department
10 Katie 09/10/2024 08:12 AM Katie 09/10/2024 08:12 AM 440 1230 130 WT 2709 1534 969 583 426 30.0 14.0 Refer to Jaga Technical Department

Standard Delivery

All Maxi 2020 Hybrids are made to order

Split deliveries option available

Please contact our customer service team to discuss your requirements

Package includes:

  • Low-H2O heat exchanger with wall brackets and fixing kit, air vent 1/8” and drain plug 1/2”
  • Casing for connection left or right at low level
  • Cover plate in stainless steel effect for the side panel at the opposite end from the valve
  • Easy to install DBH unit with operation, control and 24VDC power supply
  • Clear installation instructions

This heater is not equipped with a condensation monitor

It has to be integrated into the installation (only for cooling)

Also available:
