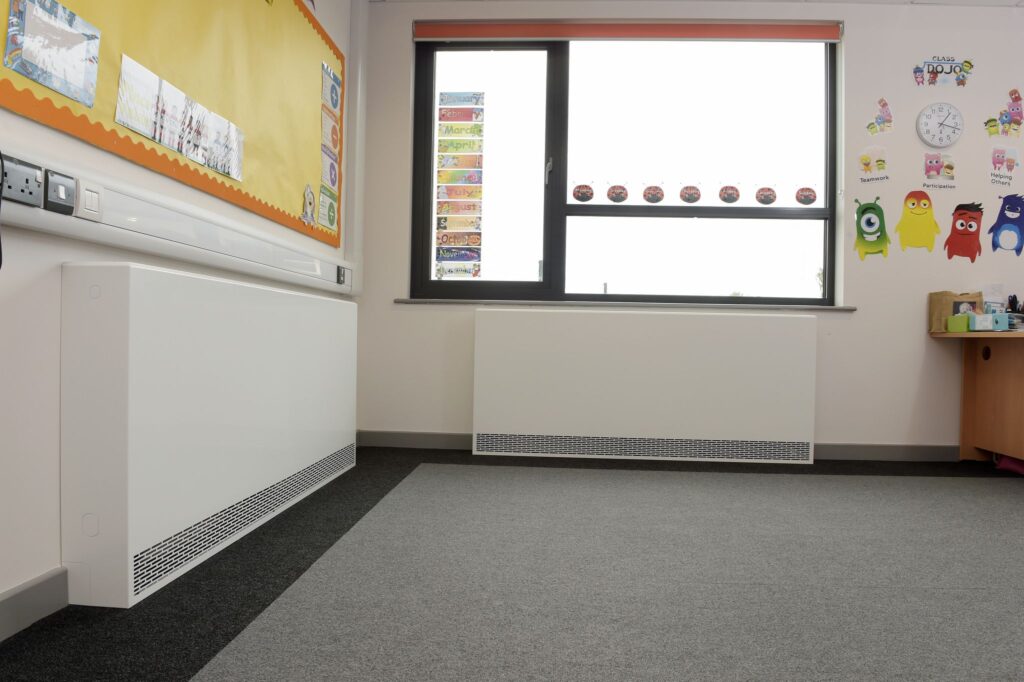

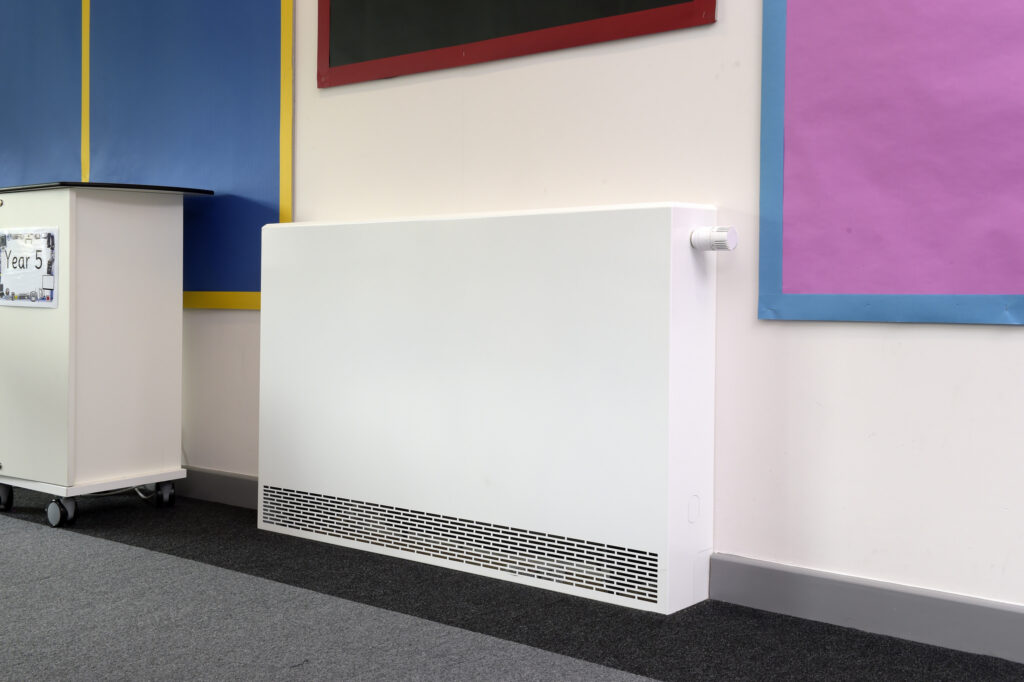

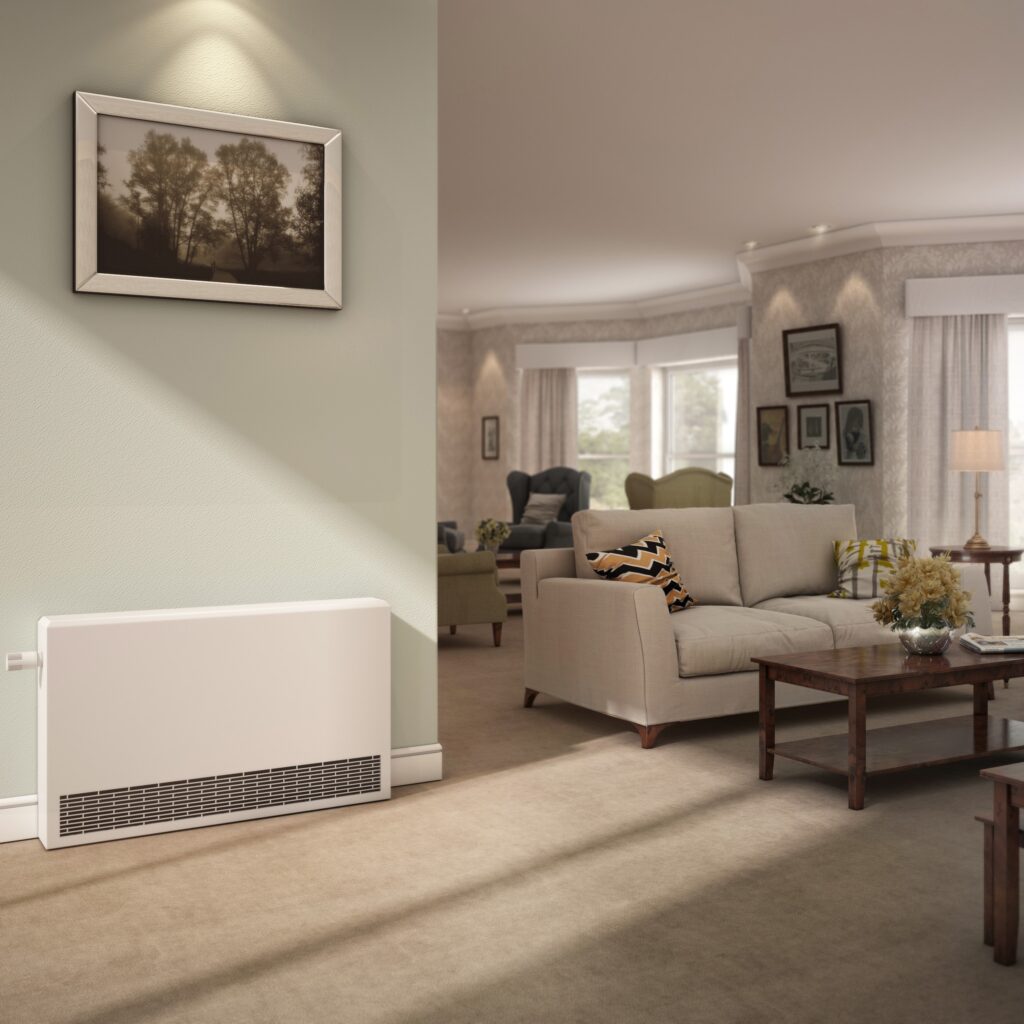

GuardianLST Hybrid TPT

An LST radiator for heating, cooling and ventilation in one

Outputs more information
  • All the benefits of Guardian, but even more compact and more powerful with DBH
  • A safe and sturdy radiator for heat pumps and low temperature systems
  • Eco-friendly light cooling with reverse cycle heat pumps providing cooled water

TPT - Temperature control configuration

  • The room temperature is set on the control panel
    • Heating from 16 to 26°C
    • Cooling from 16 to 26°C
  • The thermoelectric motor can be fitted completely invisibly within the heating unit (optional)
  • Control of the boosters and the thermoelectric motor
  • Modulating effect based on the difference between set temperature and measured temperature
  • Manual boost possible
  • 30 years warranty
  • IF Awards

Outputs

Guardian Hybrid TPT Outputs

Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT)
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT) Comfort Heating (75/65/20) [Watts] Comfort Heating (55/45/20) [Watts] Comfort Heating (45/35/20) [Watts] Comfort Heating (35/30/20) [Watts] Comfort Cooling (16/18/27( [Watts] Comfort Sound Pressure [dB(A)] Electric Power Consumption [Watts] Ordering Code
1 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 440 119 WT - - - - - - - -
2 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 440 169 WT - - - - - - - -
3 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 440 219 WT - - - - - - - -
4 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 640 119 WT 1130 640 404 243 156 30.0 5.1 GUAR.040 064 119.XXX/WT + DBHS.LLL TT/TPT
5 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 640 169 WT - - - - - - - -
6 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 640 219 WT - - - - - - - -
7 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 840 119 WT 1663 942 595 358 249 30.0 7.9 GUAR.040 084 119.XXX/WT + DBHS.LLL TT/TPT
8 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 840 169 WT 2080 1178 744 448 281 30.0 7.2 GUAR.040 084 169.XXX/WT + DBHS.LLL TT/TPT
9 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 840 219 WT 2697 1567 1011 622 307 30.0 7.2 GUAR.040 084 219.XXX/WT + DBHS.LLL TT/TPT
10 Katie 09/10/2024 07:58 AM Katie 09/10/2024 07:58 AM 400 1.040 119 WT 2190 1240 784 471 338 30.0 10.3 GUAR.040 104 119.XXX/WT + DBHS.LLL TT/TPT


Composition of the order code​​​

Hover over the parts below to find out what they stand for​​​​​

GUAR.040 084 119.233/YY DBHS 084 10 TPT

Standard Delivery

All Guardian Hybrids are made to order

Split deliveries option available

Please contact our customer service team to discuss your requirements

Package includes:

  • Low-H2O heat exchanger with wall brackets and fixing kit, air vent 1/8” and drain plug 1/2”
  • Casing for connection left or right at low level
  • Cover plate in stainless steel effect for the side panel at the opposite end from the valve
  • Easy to install DBH unit with operation, control and 24VDC power supply
  • Clear installation instructions

This heater is not equipped with a condensation monitor

It has to be integrated into the installation (only for cooling)

Standard colours

other colours : Guardian LST Hybrid TPT
