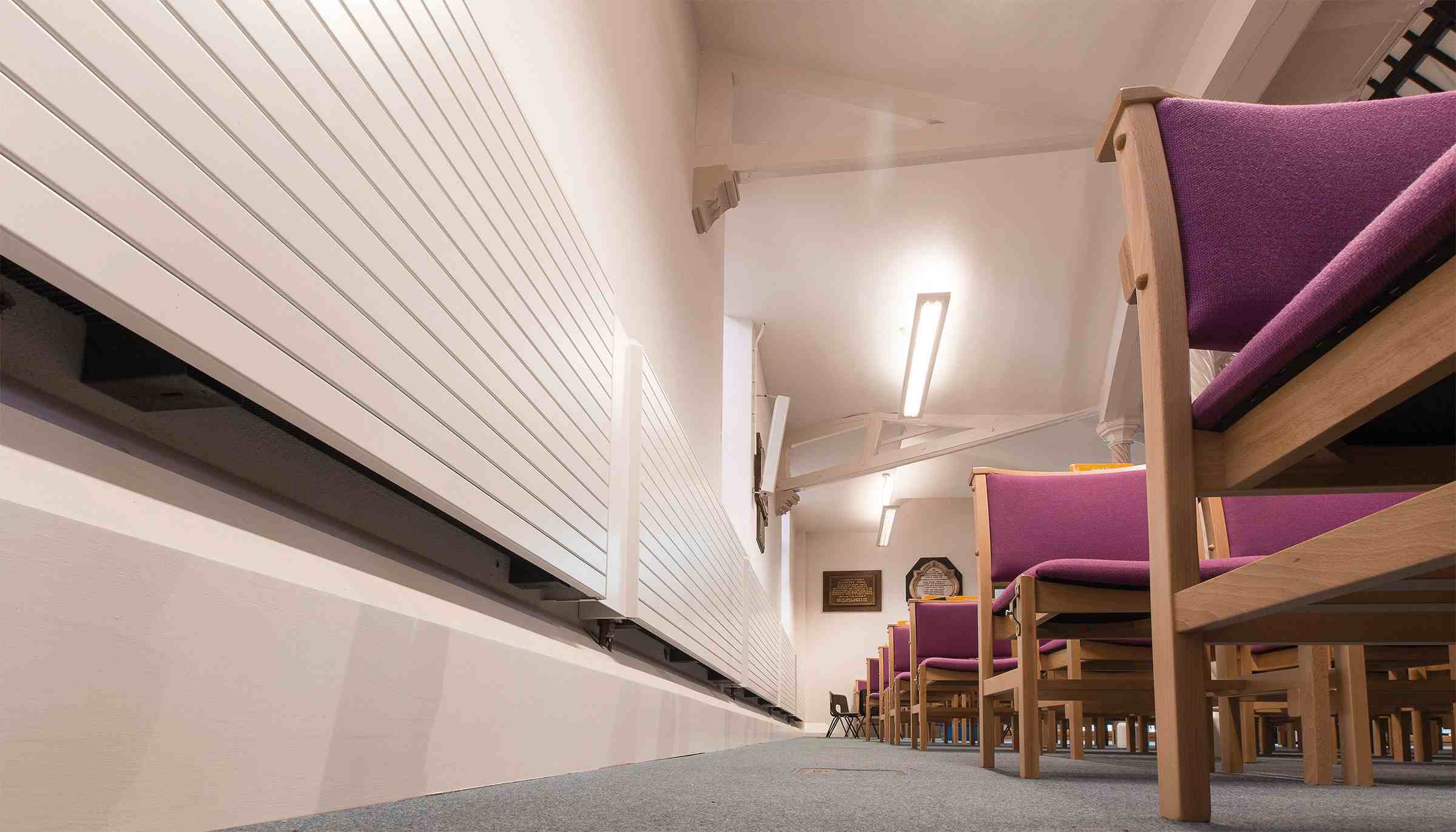

Maxi 2020LST Continuous Hybrid ACO

Seamless warmth from wall-to-wall in robust casing

Outputs more information
  • All the benefits of Maxi 2020 Continuous, but even more compact and more powerful with DBH
  • The ultimate radiator solution for low flow temperatures associated with renewable energy technology
  • Low-cost light cooling when used with reverse cycle heat pumps providing cooled water
  • Breeze functionality offering ambient air circulation

Maxi 2020 Continuous Hybrid ACO switches fully automatically between heating and light cooling

You don’t have to do anything at all to switch between heating and cooling. Thanks to its accurate room and water temperature sensors, the Hybrid heater will change automatically to cooling mode when cold water is supplied, and back to heating mode when hot water is supplied.

  • The default auto-changeover ACO mode with 3 operating positions:
  • Speed 1 - max. 26 dB(A)
  • Speed 2 - max. 30 dB(A)
  • Speed 3 - maximum position for rapid heating or cooling

Breeze function: fan activated airflow that doesn’t require any cool water.

Heating, Cooling, Breeze

DBH_heating



DBH_cooling



DBH_breeze



  • 30 years warranty

Outputs

Maxi 2020 Continuous Hybrid ACO Outputs

Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT/WF/FF)
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT/WF/FF) Comfort Heating (75/65/20) [Watts] Comfort Heating (55/45/20) [Watts] Comfort Heating (45/35/20) [Watts] Comfort Heating (35/30/20) [Watts] Comfort Cooling (16/18/27( [Watts] Comfort Sound Pressure [dB(A)] Electric Power Consumption [Watts] Ordering Code
1 Katie 09/10/2024 08:06 AM Katie 28/01/2025 03:29 PM 440 630 130 WT 1130 640 404 243 156 30.0 5.1 Refer to Jaga Technical Department
2 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 630 180 WT - - - - - - - -
3 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 630 230 WT - - - - - - - -
4 Katie 09/10/2024 08:06 AM Katie 28/01/2025 03:30 PM 440 830 130 WT 1663 942 595 358 249 30.0 7.9 Refer to Jaga Technical Department
5 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 830 180 WT 2080 1178 744 448 281 30.0 7.2 Refer to Jaga Technical Department
6 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 830 230 WT 2697 1567 1011 622 307 30.0 7.2 Refer to Jaga Technical Department
7 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 1.030 130 WT 2190 1240 784 471 338 30.0 10.3 Refer to Jaga Technical Department
8 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 1.030 180 WT 2705 1532 968 582 379 30.0 10.7 Refer to Jaga Technical Department
9 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 1.030 230 WT 3500 2034 1312 808 413 30.0 10.7 Refer to Jaga Technical Department
10 Katie 09/10/2024 08:06 AM Katie 09/10/2024 08:06 AM 440 1.230 130 WT 2709 1534 969 583 426 30.0 14.0 Refer to Jaga Technical Department


Composition of the order code​​​

Hover over the parts below to find out what they stand for​​​​​

Standard Delivery

All Maxi 2020 Hybrids are made to order

Split deliveries option available

Please contact our customer service team to discuss your requirements

Package includes:

  • Low-H2O heat exchanger with wall brackets and fixing kit, air vent 1/8” and drain plug 1/2”
  • Casing for connection left or right at low level
  • Cover plate in stainless steel effect for the side panel at the opposite end from the valve
  • Easy to install DBH unit with operation, control and 24VDC power supply
  • Clear installation instructions

This heater is not equipped with a condensation monitor

It has to be integrated into the installation (only for cooling)
