Maxi 2020LST

The strongest and safest LST for maximum durability

Outputs more information

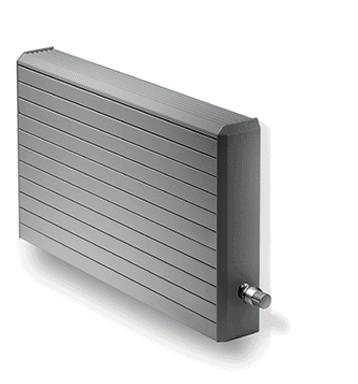

The Maxi 2020 LST is our strongest, most durable LST radiator, designed to deliver the most efficient heating outputs with the lowest energy consumption.

  • Available in single and continuous models with choice of mounting above skirting or to the floor, and top or front facing grille options
  • Safe surface temperature
  • Lower energy consumption and maximum heat emission through the Low-H2O ultra-conducting heat exchanger
  • Can offer cooling via Jaga's Dynamic Boost Hybrid (DBH) technology and ventilation via Jaga's oXygen system
  • 30 years warranty

Outputs

Maxi 2020 LST Outputs

Radiator Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT/WF/FF)
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Radiator Height (H) [mm] Length (L) [mm] Depth (D) [mm] Casing Model (WT/FT/WF/FF) Heating (75/65/20) [Watts] Heating (55/45/20) [Watts] Order code
2 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 130 WF 334 159 MAXW 044 063 130.XXX /WF
3 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 130 FT 391 180 MAXW 044 063 130.XXX /FT
4 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 180 WT 718 333 MAXW 044 063 180.XXX /WT
5 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 180 WF 497 228 MAXW 044 063 180.XXX /WF
6 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 180 FT 560 256 MAXW 044 063 180.XXX /FT
7 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 230 WT 964 441 MAXW 044 063 230.XXX /WT
8 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 230 WF 620 284 MAXW 044 063 230.XXX /WF
9 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 630 230 FT 722 328 MAXW 044 063 230.XXX /FT
10 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 830 130 WT 704 329 MAXW 044 083 130.XXX /WT
11 jagadmin 29/08/2024 07:49 AM jagadmin 29/08/2024 07:49 AM Maxi 440 830 130 WF 491 234 MAXW 044 083 130.XXX /WF


Composition of the order code​​​

Hover over the parts below to find out what they stand for​​​​​

MAXW 044 083 180 XXX YY
