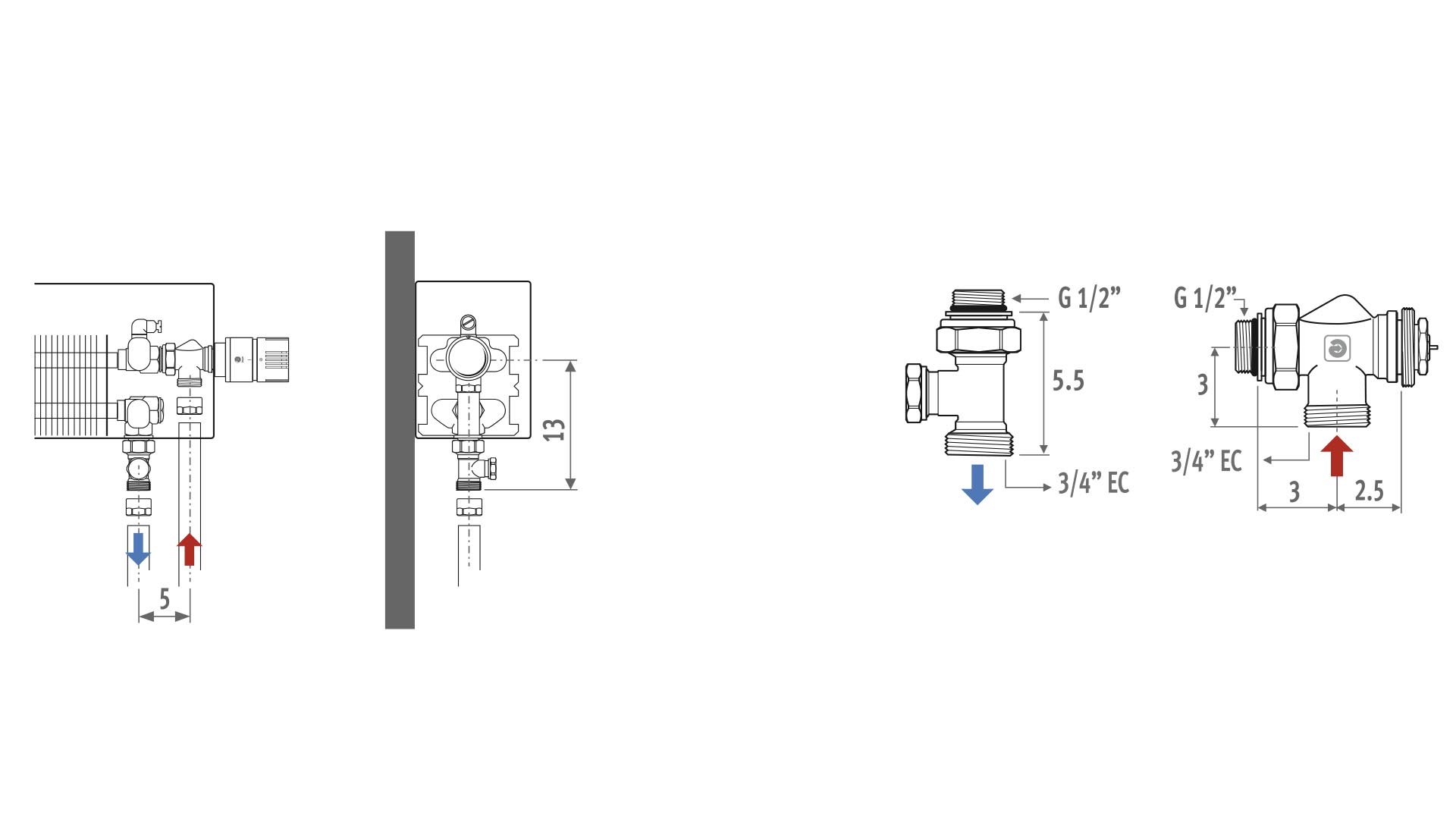

Set 222

Technical information

  • 3/4" Eurocone male thread
  • two pipe
  • connection to the floor
  • default setting in 6 steps
  • Kv-values: 0.10 to 0.60 m³/h.
  • flow and return completely lockable
  • Tested to DIN EN 215
  • With screw thread M30 x 1.5 (Heimeier compatible)
  • With synthetic spindle protection for setting on site


Composition of the order code

Order code

Valve, control and sleeve couplings are included in the price.

Heating only
COLO.JF2.JW.4 ... White JW
COLO.JF2.AC.4 ... Chrome AC
COLO.JF2.AW.4 ... White AW
COLO.JF2.AS.4 ... Silver AS
COLO.JF2.MA.4 ... White MA
COLO.JF2.JH.4 ... White JH
COLO.JF2.HC.4 ... White HC
COLO.JF2.JB.4 ... Black JB

fill in sleeve coupling code.

Heating and cooling
COLO.JF2.MA.4 ... White MA
COLO.JF2.HC.4 ... White HC

fill in sleeve coupling code.

Sleeve coupling

  • 3/4" Eurocone sleeve coupling - Synthetic or RPE/ALU tube

    Complete ordering code connection set with code sleeve couplings according to the used material and ø of the tube
    Synthetic or RPE/ALU
    code Tube Ø   code Tube Ø
    612 12/2   615 15/2.5
    614 14/2   619 16/1.5
    616 16/2   620 20/2
    617 17/2
    618 18/2
    Max. Tightening Torque
    Synthetic: 30-40 Nm
    RPE/ALU: 20-30 Nm

  • 3/4" Eurocone sleeve coupling - Precision metal tube

    Complete ordering code connection set with code sleeve couplings according to the used material and ø of the tube
    precision metal tube
    code Tube Ø
    112 12/1
    114 14/1
    115 15/1
    116 16/1
    118 18/1
    Max. Tightening Torque
    Precision metal tube: soft copper 45-55 Nm, semi-hard copper 60-80 Nm, mild steel 60-70 Nm
