Freedom

Freedom to choose the place of installation, power supply, and usage

Outputs more information

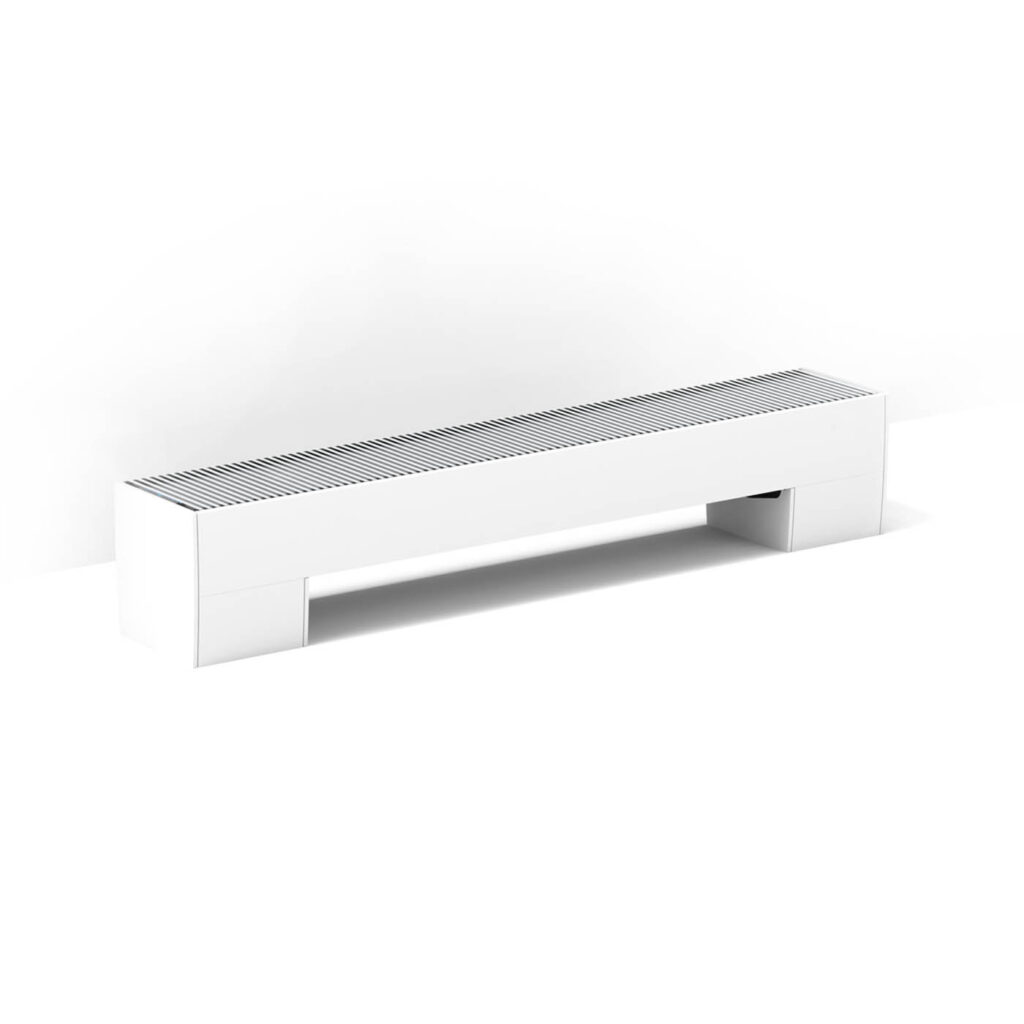

Packshot_Freedom Clima
  • Effective at the lowest water temperatures
  • The perfect solution for use with heat pumps and new heating systems operating at very low water temperatures.
  • Compact elegant design
  • From its compact design, it packs a powerful punch and performs much more effectively than a bulky traditional radiator or fan convector and can be sympathetically integrated into any interior design concept
  • Suitable for condensing and non-condensing cooling
  • pre-assembled Jaga Dynamic Product Controller (JDPC) with fingertip control panel
  • Hybrid Heating

Outputs

HEATING

LIGHT COOLING
Non-condensing		DEEP COOLING
Total		DEEP COOLING
Sensible		-
Height


[cm]		Length


[cm]		 Type


Position75/65/20


[Watts]		55/45/20


[Watts]		45/35/20


[Watts]		35/30/20


[Watts]		16/18/27
50% R.V.

[Watts]		7/12/27
50% R.V.

[Watts]		7/12/27
50% R.V.

[Watts]		Sound
pressure

dB(A)		Electric
power consumption

[Watts]		Air flow


[m3/h]		Ordering code
AllAllAllAll
Loading data from server ...

Standard delivery

Fully pre-mounted free-standing radiator consisting of:

  • aluminium casing
  • aluminium cover panels
  • aluminium grilles
  • dynamic heat exchanger with flexible stainless steel connections 1/2”, 15 cm long
  • 24 VDC tangential activator(s), with integrated stainless steel filter
  • hydronic and electrical connections integrated in the left foot
  • pre-assembled JDPC with control panel
  • 24 VDC clamp connector for electrical connection to be connected to an external power supply

Composition

FDCF_EXP_Nummering

  1. aluminium grilles
  2. stainless steel flexible connections 1/2", 15 cm long
  3. electrical connection
  4. pre-assembled Jaga Dynamic Product Controller (JDPC) with fingertip control panel
  5. inner housing
  6. condensate tray with outlet spiggot ø 10 mm
  7. end cap
  8. housing
  9. thermal Activator(s) (tangential mini activator)
  10. Low-H2O heat exchanger
  11. mounting template

Dimensions

Freedom_Clima_dimensions
