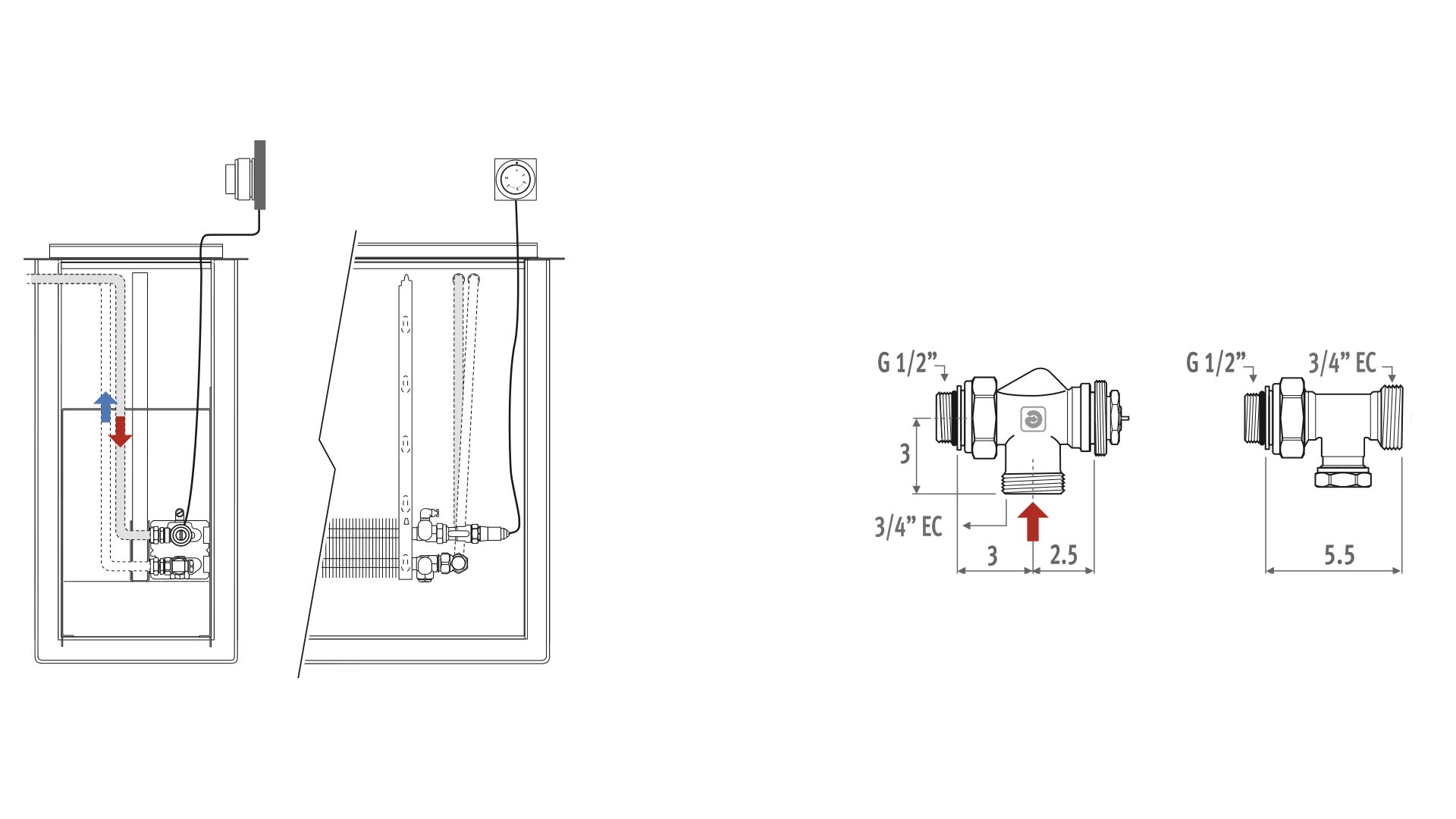

Set 272

  • 3/4" Eurocone male thread
  • Two pipe
  • Presetting in 6 steps
  • Kv-values: 0.10 to 0.60 m³/h.
  • Flow and return completely lockable
  • Tested to DIN EN 215
  • With screw thread M30 x 1.5 (Heimeier compatible)
  • With synthetic spindle protection for setting on site


Composition of the order code

Valve, control and sleeve couplings are included in the price.



COMC.JV2.MA.4... White MA
COMC.JV2.JB.4... Black JB
COMC.JV2.RD.4... White RD
COMC.JV2.RW.4... White RW
COMC.JV2.RB.4... Black RB
COMC.JV2.DS.4... chrome / white DS
COMC.JV2.24.4... 24 VDC 24
COMC.JV2.23.4... 230 VAC 23

Fill in sleeve coupling codes.

Sleeve coupling

  • 3/4" Eurocone sleeve coupling - Synthetic or RPE/ALU tube

    Complete ordering code connection set with code sleeve couplings according to the used material and ø of the tube
    Synthetic or RPE/ALU tube
    code Tube Ø   code Tube Ø
    612 12/2   615 15/2.5
    614 14/2   619 16/1.5
    616 16/2   620 20/2
    617 17/2
    618 18/2
    Max. Tightening Torque
    Synthetic: 30-40 Nm
    RPE/ALU: 20-30 Nm

  • 3/4" Eurocone sleeve coupling - Precision metal tube

    Complete ordering code connection set with code sleeve couplings according to the used material and ø of the tube
    precision metal tube
    code Tube Ø
    112 12/1
    114 14/1
    115 15/1
    116 16/1
    118 18/1
    Max. Tightening Torque
    Precision metal tube: soft copper 45-55 Nm, semi-hard copper 60-80 Nm, mild steel 60-70 Nm
