Briza 124-Pipe Ceiling Recess

super slim, super powerful for heating and cooling

Outputs more information

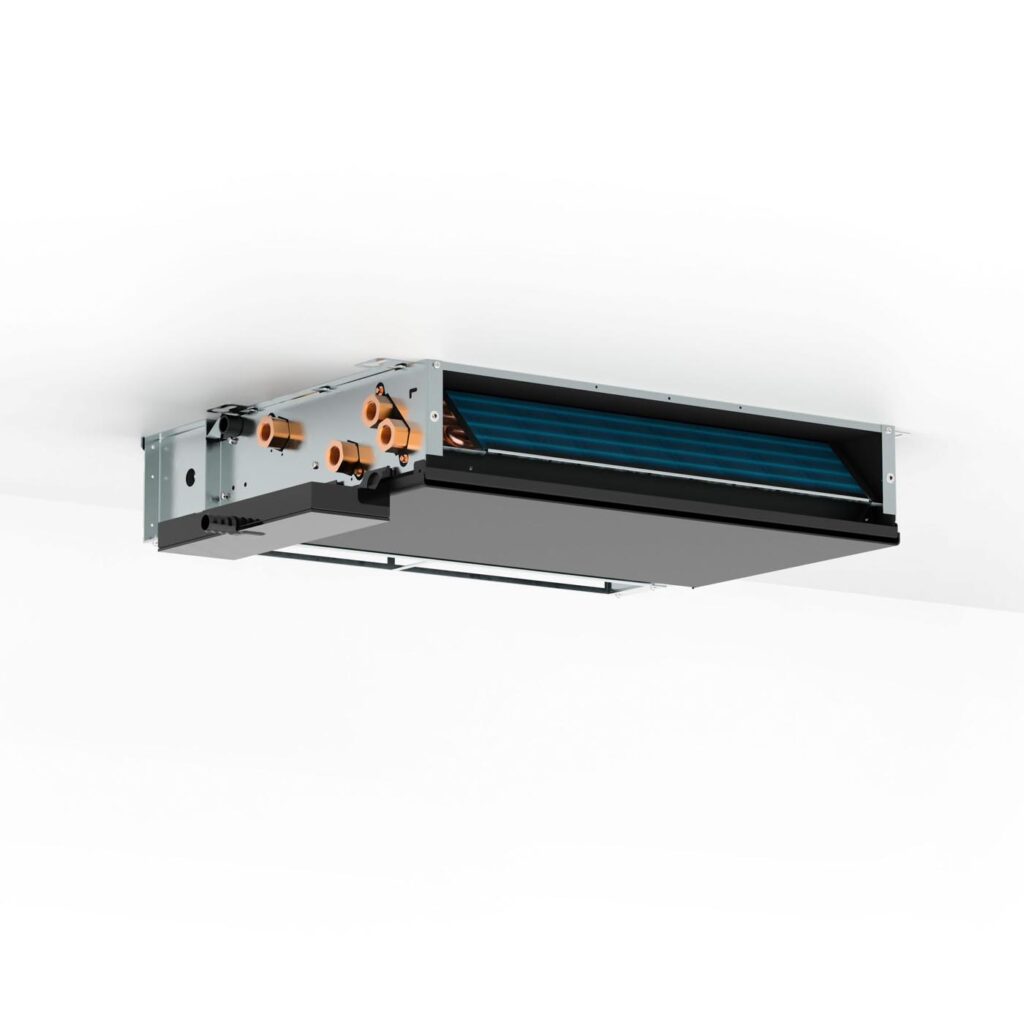

Packshot_Briza 12 BuiltIn Ceilling 4 pipe
  • A climate unit with a dual personality
  • Provides comfortable heat in winter and refreshing cooling in summer
  • Provides you with an optimum indoor climate throughout the year
  • Ideal for connecting to low-temperature systems like heat pumps, solar energy systems and condensing boilers
  • Hybrid Heating
  • 30 years warranty

Outputs

Briza 12 4-Pipe Ceiling Recess

Height (H) [mm] Length (L) [mm] Type Speed [V]
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Height (H) [mm] Length (L) [mm] Type Speed [V] Heating (75/65/20) [Watts] Heating (55/45/20) [Watts] Heating (45/35/20) [Watts] Heating (35/30/20) [Watts] Light Cooling (16/18/27) [Watts] Deep Cooling (7/12/27) [Watts] Deep Cooling (7/12/27) [Watts] Sound Pressure [dB(A)] Electric Power Consumption [Watts] Air Flow [m3/h] Ordering Code
1 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 520 12 2 799 477 314 198 100 19 1.8 32 BZBC 038 052 12 4 20
2 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 520 12 4 918 548 361 227 119 25.2 3 67 BZBC 038 052 12 4 20
3 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 520 12 6 1053 628 414 261 140 32.5 4.8 95 BZBC 038 052 12 4 20
4 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 520 12 8 1228 732 482 304 163 39 8 128 BZBC 038 052 12 4 20
5 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 520 12 10 1468 876 577 363 188 44 13.7 157 BZBC 038 052 12 4 20
6 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 720 12 2 1343 801 528 332 165 21.5 2 57 BZBC 038 072 12 4 20
7 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 720 12 4 1497 893 588 370 192 27.5 3.4 101 BZBC 038 072 12 4 20
8 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 720 12 6 1681 1003 660 416 222 34.9 5.7 158 BZBC 038 072 12 4 20
9 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 720 12 8 1965 1172 772 486 260 40.7 8.4 213 BZBC 038 072 12 4 20
10 Katie 28/03/2025 04:01 PM Katie 28/03/2025 04:01 PM 380 720 12 10 2417 1441 949 598 310 45 14.4 252 BZBC 038 072 12 4 20


Composition of the order code​​​

Hover over the parts below to find out what they stand for​​​​​

BZBC 038 122 12 4 20/70
