Clima Canal 10 Plug & Play2-Pipe

Outputs more information
CLCP_PAC

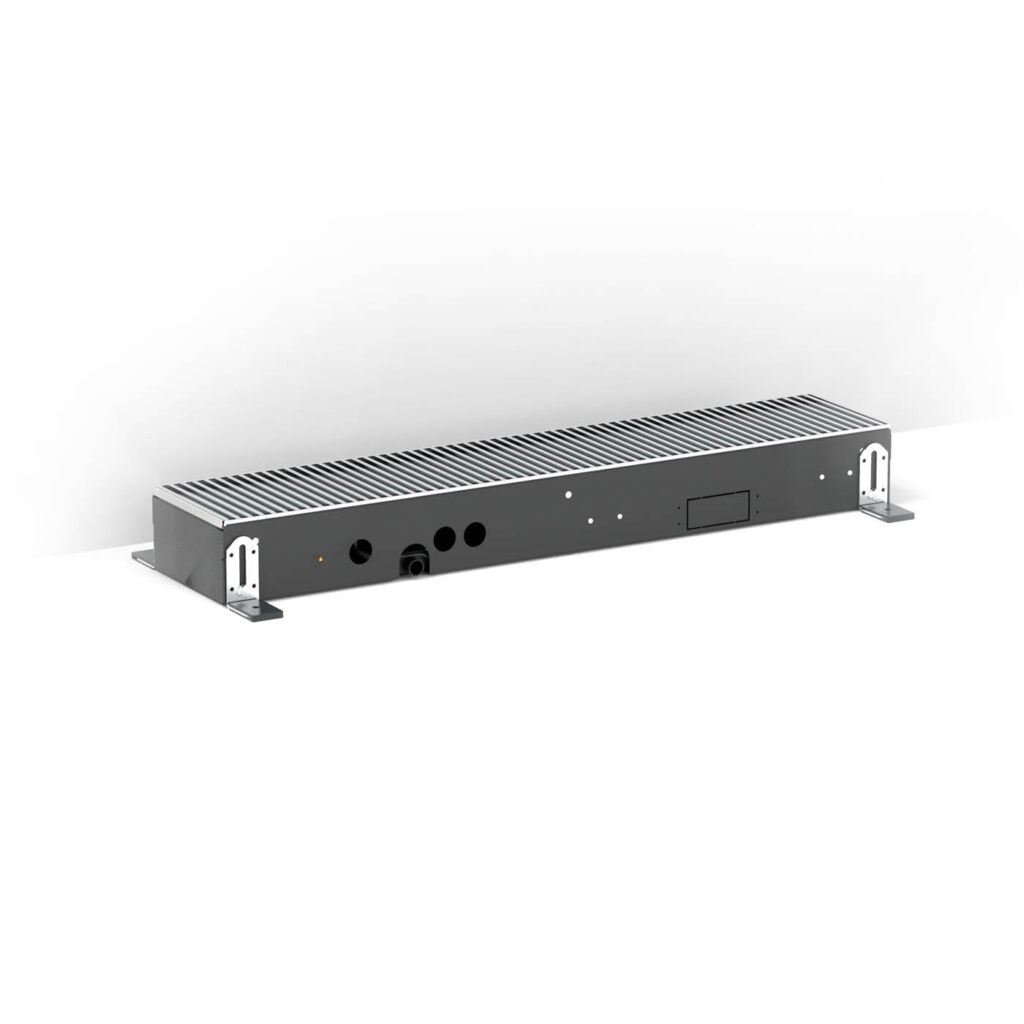

Jaga Clima Canal 10 Plug & Play is identical to the standard Clima Canal: it comes with return valves G1/2”, flexible connection hoses 1/2", a Jaga Dynamic Product Controller with operating panel and a preinstalled 24 VDC power supply.

  • Our Clima Canal allows for a continuous installation
  • Silent and unobtrusive, Clima Canal provides the greatest possible climatic comfort

Outputs

Clima Canal 10 Plug & Play

Height (H) [mm] Length (L) [mm] Width (W) [mm]
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Height (H) [mm] Length (L) [mm] Width (W) [mm] Control Voltage Heating (75/65/20) [Watts] Heating (55/45/20) [Watts] Heating (45/35/20) [Watts] Heating (35/30/20) [Watts] Light Cooling (16/18/27) [Watts] Deep Cooling (7/12/27) [Watt] Deep Cooling (7/12/27) [Watts] Sound Pressure [dB(A)] Electric Power Consumption [Watts] Air Flow [m3/h] Order Code
1 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 900 180 2 276 165 108 68 30 42 59 14 0.5 24 CLCP 010 090 18 BNA
2 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 900 180 4 496 296 195 123 66 96 135 15 0.8 37 CLCP 010 090 18 BNA
3 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 900 180 6 699 417 275 173 104 161 223 23 1.3 52 CLCP 010 090 18 BNA
4 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 900 180 8 891 531 350 220 144 234 319 28 2.1 68 CLCP 010 090 18 BNA
5 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 900 180 10 1075 641 422 266 185 307 414 34 3 79 CLCP 010 090 18 BNA
6 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 1260 180 2 569 339 224 141 62 87 122 15 0.6 42 CLCP 010 126 18 BNA
7 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 1260 180 4 1021 609 401 253 135 197 275 19 1.3 75 CLCP 010 126 18 BNA
8 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 1260 180 6 1438 858 565 356 214 332 458 29 2.7 98 CLCP 010 126 18 BNA
9 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 1260 180 8 1834 1094 720 454 296 480 655 32 4.6 125 CLCP 010 126 18 BNA
10 jagadmin 31/01/2025 03:01 PM jagadmin 31/01/2025 03:01 PM 100 1260 180 10 2214 1320 870 548 381 632 852 37 7.1 160 CLCP 010 126 18 BNA


Composition of the order code​​​

Hover over the parts below to find out what they stand for​​​​​

CLCP 010 180 18 XXX

Standard Delivery

  • casing in Sendzimir-galvanised steel sheet (RAL7024) with height adjustment and stainless steel grille support
  • anodised aluminium grille
  • dynamic heat exchanger
  • thermal activator(s), (tangential mini activator) 24 VDC
  • stainless steel flexible connections 1/2", 15 cm long
  • integrated 24 VDC power supply and JDPC
  • connection set with 2 lockshield valves
  • height-adjustable base 0 < 4.5 cm
  • fine adjustment 0 > 0.8 cm
  • cover plates

Composition

  1. protection panel: panel for mounting and site protection
  2. valves Cover plate
  3. Jaga lockshield valves 1/2” female thread
  4. stainless steel flexible connections 1/2", 15 cm long: stainless steel flexible hoses allow the internal mechanism to be removed completely for easy cleaning
  5. pre-assembled Jaga Dynamic Product Controller (JDPC) with fingertip control panel
  6. fine adjustment
  7. height-adjustable base 0 > 4.5 mm provided with acoustic decoupling
  8. Electrical connection always left-hand side
  9. hydronic connection always left-hand side
  10. Duct with stainless steel grille support coated housing in sendzimir galvanised steel plate
  11. optional nozzle(s) for ventilation duct
  12. Fine adjustment to max. +0.8 cm, for a perfect alignment with the finished floor
  13. condensate tray, for drainage (ø 2 cm) of condensate water
  14. fans
  15. dynamic heat exchanger
  16. Grille: alu. natural grille

Dimensions

CLCP_DIM_Afmetingen_2023
